All Electric Ruichi EC71L 295km Range ev Delivery Trucks Small Pickup
Specification
| Models | EC71L
|
| Mini Cargo Truck
|
| Configuration
| Standard Edition | Long range version |
| Basic parameters
|
| L*W*H(MM)
| 5620×1785×1985 |
| Cargo Size(MM)
| 3300×1680×375 |
| Kerb weight(kg)
| 1555 | 1610 |
| Number of Crew Members (People)
| 2 |
| Rated load mass (kg)
| 1615 | 1560 |
| Van cargo volume (m³)
| / | / |
| Engine
|
| Maximum power (kW)
| 70 |
| Maximum torque (N.m)
| 230 |
| Battery Type
| Lithium Iron Phosphate |
| Power battery capacity (kWh)
| 41.85 | 50.38 |
| Operating mileage (CLTC)
| 246 | 295 |
| Other configurations
|
| Battery heating function
| Yes | Yes |
| ABS anti-lock brake
| ● | ● |
| Manual air conditioner
| ● | ● |
"●" - indicates that this configuration is available, "○" - indicates that this configuration is optional,
and "-" - indicates that there is no such configuration;
Ruichi EC71L Small Pickup Truck Feature
1.Cockpit configuration
Layout and adjustment: The cockpit adopts a two-door two-seat layout, and the seats have front and rear and backrest adjustment functions.
Comfort configuration: 15-inch rims, manual air conditioning, and electric windows are provided.
Safety auxiliary configuration: equipped with parking radar, ABS anti-lock, brake force distribution, and optional central control color large screen and reversing image.
2. Vehicle size
The length, width and height of the cargo model are 5620*1785*1985 mm respectively, and the wheelbase is 3360 mm.
3. Power system
Drive form and motor parameters: It adopts rear-mounted rear-wheel drive form, and the whole series is equipped with a drive motor with a maximum power of 70 kW and a peak torque of 230 Nm.
4. Suspension system
Equipped with front McPherson independent suspension and longitudinal leaf spring non-independent rear suspension.
5. Battery and endurance
Standard version: matched with 41.85 kWh lithium iron phosphate battery pack, the cargo CLTC endurance is 246 kilometers.
Long-range version: Equipped with a 50.38 kWh lithium iron phosphate battery, the cargo CLTC range is 295 km.
Ruichi EC71L Flated Truck

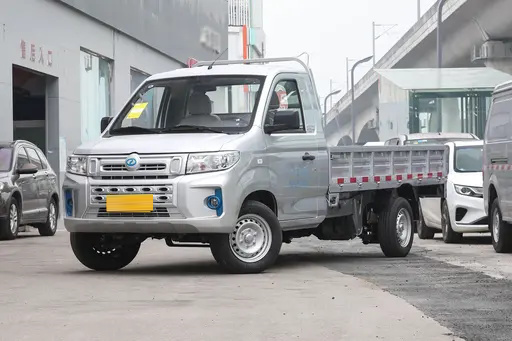

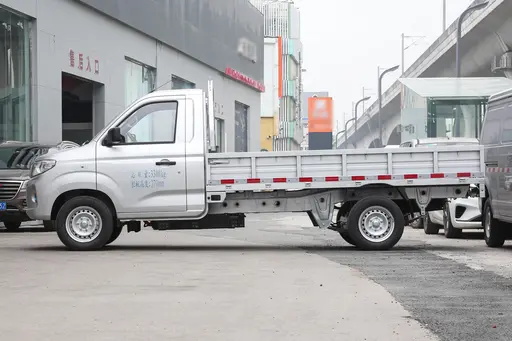

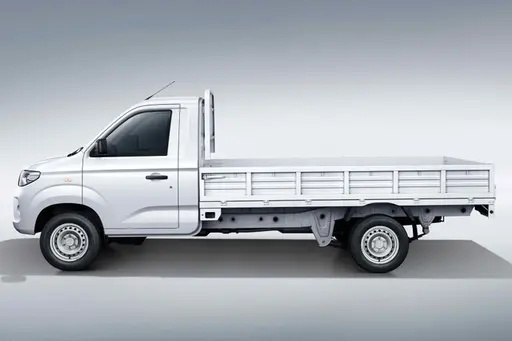

Ruichi EC71L Photo Gallery
